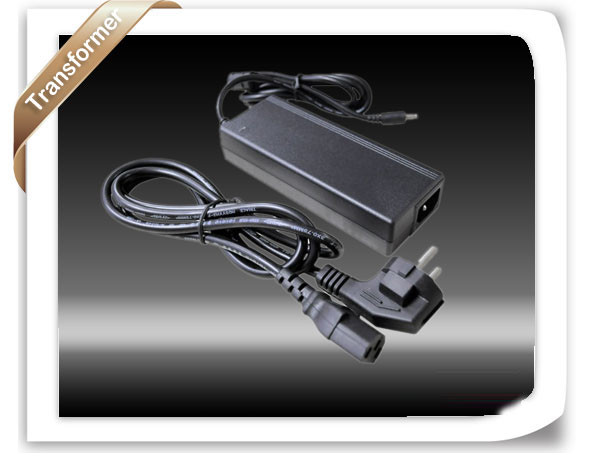

Features:
Certification: CE and RoHs
Dimensions(mm):115X49.5X30mm (L*W*H)
Weight(Kg):0.6
Input Voltage Range(v): 100-240 V
Max Output power(w): 72 W
Output Voltage: 12or24 VDC
|
Part No.
Parameter
|
JJW-72-12
|
|
Min
|
Typical
|
Max
|
Unit
|
|
Input AC Current
|
----
|
----
|
1400
|
mA
|
|
Input Voltage
|
----
|
100-240
|
----
|
VAC
|
|
Voltage & Frequency
|
47
|
50/60
|
63
|
Hz
|
|
Power factor
|
----
|
----
|
0.63
|
----
|
|
No load power
|
----
|
----
|
1
|
W
|
|
Output current
|
----
|
----
|
6000
|
mA
|
|
Output voltage
|
----
|
----
|
12
|
V
|
|
Output power
|
----
|
69
|
72
|
W
|
|
Output voltage ripple
|
----
|
----
|
----
|
mV
|
|
Total efficiency
|
77
|
----
|
81
|
%
|
|
Service life
|
30000
|
----
|
----
|
Hour
|
|
Repeatedly to start interval
|
3
|
----
|
----
|
Second
|
|
Over temperature protection
|
----
|
Yes
|
----
|
----
|
|
Output short circuit protection
|
----
|
Yes
|
----
|
----
|
|
Work environment
|
-25
|
----
|
40
|
℃
|
|
Storage environment
|
-40
|
----
|
80
|
℃
|
|
Relative humidity
|
10
|
----
|
95
|
%
|
|
Atmospheric pressure
|
70
|
----
|
106
|
KPA
|
|
Dimension
|
150mm X 58mm X 32 mm
|
Applications:
Used with LED lighting fixtures |
