● Output power: 5V:<60W, 12V:<144W, 24V:<288W


Used with LED lighting fixtures









1.      Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

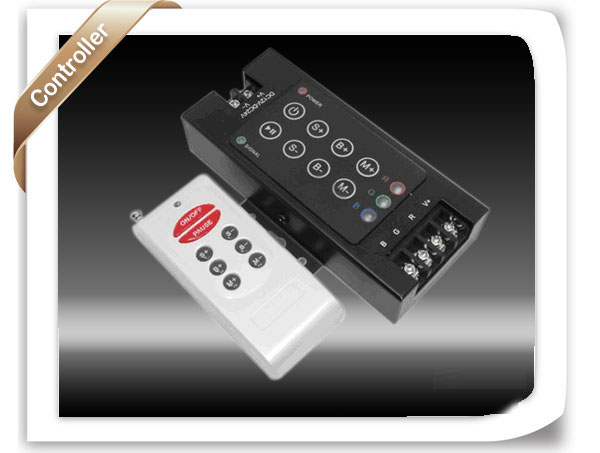

2.      Adopt film button and RF for controlling,there are 8 buttons in all, the funtion of each key as follows:

(1): you could turn on/off controller at any time;

(2): Play/pause button,it is convenient for you to see the static effection of led;

    S(3)+: The step of the speed change add 1 by each pressing;

   S-(4): The step of the speed change subtract 1 by each pressing;

  B+(5): A brightness control button,the step of the brightness add 1 by each pressing;

   B-(6): The step of the brightness subtract 1 by each pressing;

  M+(7): The NO. of patterns add 1 by each pressing;(refer to the following form)

   M-(8): The NO. of patterns subtract 1 by each pressing;

    ● Supply voltage: DC5V, 12V ,18V, 24V<optional>（Order goods need marking out the required voltage）

  ● Output: 3 channels

    ● Connecting mode: common anode

  ● External dimension: L121ΧW53ΧH25 mm

● Packing size: L150ΧW76ΧH51 mm

● Net weight:255g

● Gross weight:285g

● Static power consumption: <1W

● Output current: <4A(each channel)
