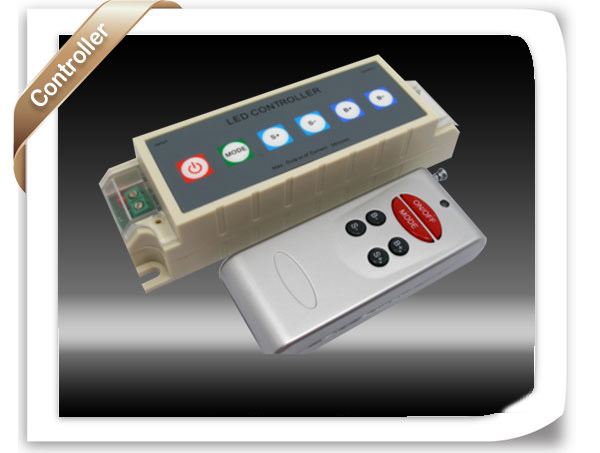

Technical parameters :
● working temperature: -20-60 ℃
● supply voltage: DC5V, 12V ,18V, 24V < optional >
( supply voltage should be marked on order )
● output: 3 channels
● connection mode: common anode
● external dimension: L130 Χ W40 Χ H31 mm
● packing size: L140 Χ W50 Χ H60 mm
● net weight: 125g
● gross weight: 150g
● static power: <1W
● output current: <3A( each channel )
● output power: 5V<45W,12V<108W,24V<216W

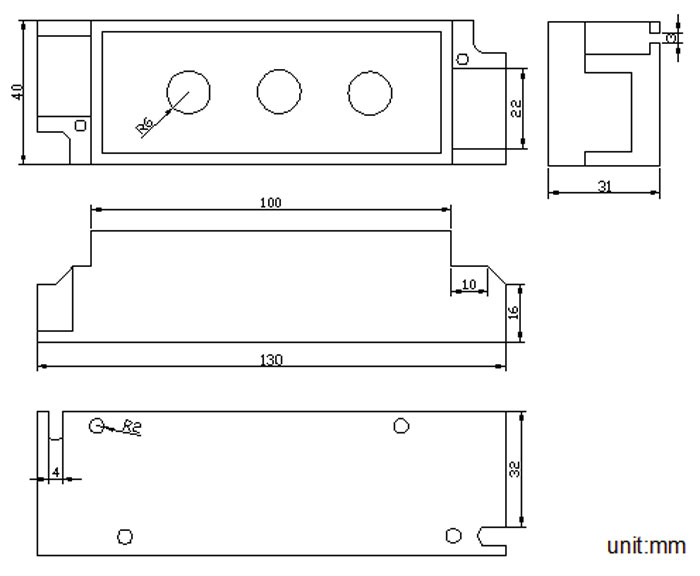

Dimension of JJW-CT10:
Interface Specifications
Power input interface:
Adopt male and female connector with screw.
Load output interface:
Adopt male and female connector with screw.
Direction for Use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. There are six keys on the remote controller panel, the funtion of each key as follows:
ON/OFF: you could turn on/off controller at any time;
MODE: the color change button,there are 21 modes of change for you to choose;
B+: A brightness control button,the grade of the brightness add 1 by each pressing,a total of 256 grades;
B-: The grade of the brightness subtract 1 by each pressing;
S+: The grade of the speed change add 1 by each pressing,a total of 100 grades.
S-: The grade of the speed change subtract 1 by each pressing. |
