● working temperature: -20-60 ℃

   ● supply voltage: DC5V, 12V ,18V, 24V < optional > ( supply voltage should be marked on order )

● output: 1 channel

● net weight: 100g

● gross weight: 130g

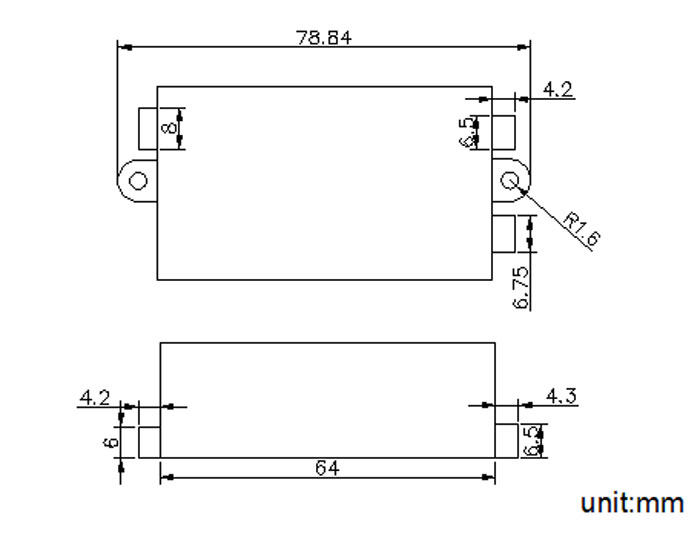

● external dimension: L110 Χ W56 Χ H34 mm

● packing size: L122Χ W85 Χ H42 mm

● rated load current: <8A

● output power: 5V<40W,12V<96W,24V<192W













  input interface:

  output interface:



Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
