Features:
Available length,0.5 meter and 1 meter.
High brightness,adopting super bright LED.
completely waterproof,IP68, can light in the water
It is easy to install with clips and screws.
Life span: 50,000 hours.
Emitting color: Red, Green, Blue, Yellow, Warm white, Commercial White, Pure White.
Working Voltage:DC 12VDC(24VDC is available).
Working Temperature: -40 ~ 50 ℃.
Ambient Humidity: 0% ~ 100% relative humidity.
Parameter:
| Part NO. |
Waterproof Rating |
LED Type |
LED Quantity |
Power |
Beam Angle |
Work Voltage |
Work
Temperature |
Emitting Color |
Parkage |
| JJW-LRD3X96T-S |
IP68 |
DIP |
96leds/meter |
7.6W/meter |
100° |
12VDC |
-40-50℃ |
Red/Green/Blue/Yellow/White |
3PCS/reel |
Dimension of JJW-LRD3X96T-S:
Connection Graph:

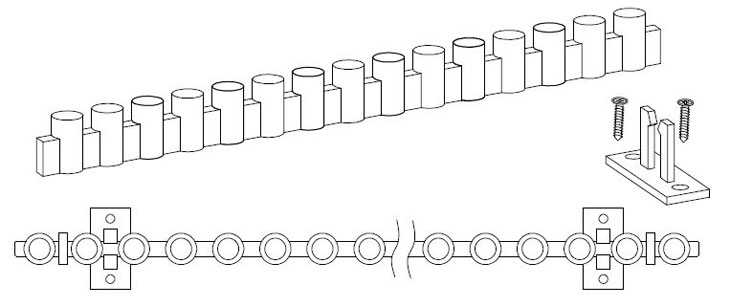

Installation:

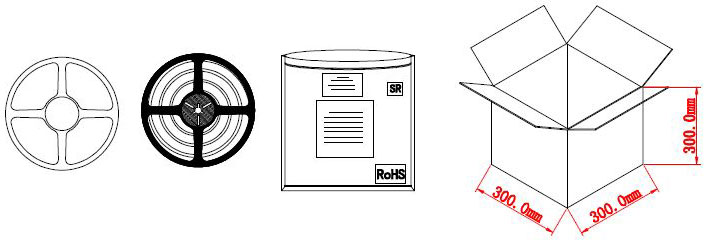

Package:
Application:
LED strip light can be applied for wide range of areas, indoor and outdoor. It can be sticked onto the wall and other objects, or twined
round pillar or other objects, decorating door, hall, corridor, cabinet, sculpture, plants, etc.
|
