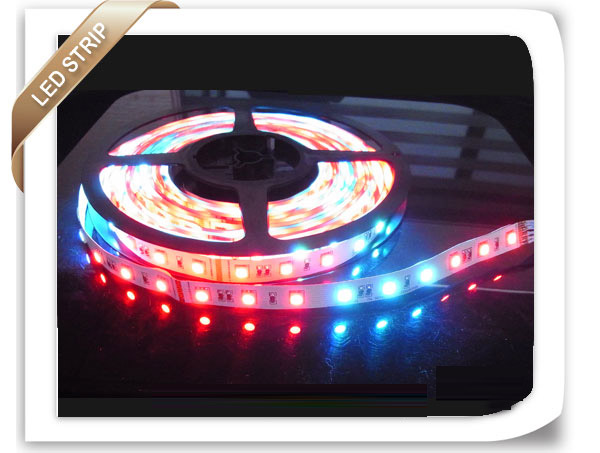

| 1 Size(mm):5000*15*3,12.96Watt/Meter,5 meters/reel
2 IP20, RGB Color,RGB5050
3 package:5 meter per reel,1 reel per bag,packed by anti-static bag and export Carton
4 Certificate: CE,RoHs and UL |
Features:
Available in lengths from 0.5meter to 5meters
It is easy to install with 3M sticky back tape
Standard length is 5 meters per reel with 10-15cm electric cable wire
PCB Material: Flexible copper, golden, white or black is available
Life span: 50,000 hours
Working Voltage: 12VDC
Working Temperature: -40 ~ 50 ℃.
Humidity: 0% ~ 95% relative humidity
Parameter:
| Part NO. |
waterproof Rating |
LED Type |
LED Quantity |
Power |
Beam Angle |
Work Voltage |
Work
Temperature |
Emitting Color |
| JJW-MR5050QN54T |
IP20 |
SMD5050 |
54pcs |
12.96W/m |
120° |
12VDC/AC |
-40-50℃ |
RGB color changing |
Dimension of JJW-MR5050QN54T:
Connection Graph:
Package:
Application:
LED strip light can be applied for wide range of areas, indoor and outdoor. It can be sticked onto the wall and other objects, or twined round pillar or other objects, decorating door, hall, corridor, cabinet, sculpture, plants, etc.
|
